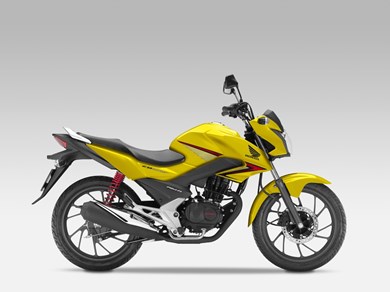

Honda CB125F (2026)
Technical Data
| Engine and Drive Train | |
|---|---|
| Cylinders | 1 |
| Strokes | 4-Stroke |
| Valves | OHC |
| Cooling | Air |
| Displacement | 124,7 ccm |
| Bore | 52,4 mm |
| Stroke | 57,8 mm |
| Max. Power Output | 10,6 HP |
| Rpm at Max. Power Output | 7750 rpm |
| Max. Torque | 10,2 Nm |
| Rpm at Max. Torque | 6250 rpm |
| Compression Ratio | 9,2 |
| Starter | Electric |
| Clutch Type | Multiplate in oil-bath |
| Ignition | Transistor |
| Final Drive | Chain |
| Chassis | |
| Frame | Steel |
| Frame type | Central tube |
| Suspension Rear | |
| Shock absorber | Dual Shock |
| Brakes Front | |
| Piston | Double piston |
| Brakes Rear | |
| Rear brake | Drum |
| Dimensions and Weights | |
| Front tyre width | 80 mm |
| Front tyre height | 100 % |
| Front tyre diameter | 18 inch |
| Rear tyre width | 90 mm |
| Rear tyre height | 90 % |
| Rear tyre diameter | 18 inch |
| Length | 2035 mm |
| Width | 765 mm |
| Height | 1080 mm |
| Wheelbase | 1295 mm |
| Seat Height from | 775 mm |
| Kerb Weight | 128 kg |
| Fuel Tank Capacity | 13 l |
| License | A1 |
All information is supplied without guarantee. Errors and clerical errors reserved.
