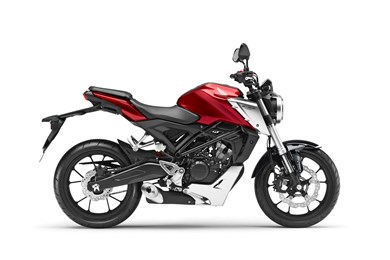

Honda CB125R (2025)
Technical Data
| Engine and Drive Train | |
|---|---|
| Cylinders | 1 |
| Strokes | 4-Stroke |
| Valves per cylinder | 2 |
| Valves | OHC |
| Cooling | liquid |
| Displacement | 125 ccm |
| Bore | 58 mm |
| Stroke | 57,2 mm |
| Max. Power Output | 13,3 HP |
| Rpm at Max. Power Output | 10000 rpm |
| Max. Torque | 10 Nm |
| Rpm at Max. Torque | 8000 rpm |
| Compression Ratio | 11 |
| Fuel system | Injection |
| Starter | Electric |
| Clutch Type | Multiplate in oil-bath |
| Ignition | Transistor |
| Final Drive | Chain |
| Transmission Type | Gearshift |
| Number of gears | 6 |
| Chassis | |
| Frame | Steel |
| Frame type | Central tube |
| Steering axis angle | 65,8 degree |
| Trail | 90,2 mm |
| Suspension Front | |
| Front suspension | Upside-Down telescopic fork |
| Diameter | 41 mm |
| Suspension Rear | |
| Rear suspension | Swing arm |
| Shock absorber | Monoshock |
| Brakes Front | |
| Front brake | Single disk |
| Diameter | 296 mm |
| Piston | Four pistons |
| Technology | radial |
| Brand | Nissin |
| Brakes Rear | |
| Rear brake | Disc |
| Diameter | 220 mm |
| Piston | Single piston |
| Assistance Systems | |
| Assistance systems | ABS |
| Dimensions and Weights | |
| Front tyre width | 110 mm |
| Front tyre height | 70 % |
| Front tyre diameter | 17 inch |
| Rear tyre width | 150 mm |
| Rear tyre height | 60 % |
| Rear tyre diameter | 17 inch |
| Length | 2015 mm |
| Width | 820 mm |
| Height | 1055 mm |
| Wheelbase | 1345 mm |
| Seat Height from | 816 mm |
| Kerb Weight (with ABS) | 126 kg |
| Fuel Tank Capacity | 10,1 l |
| License | A1 |
