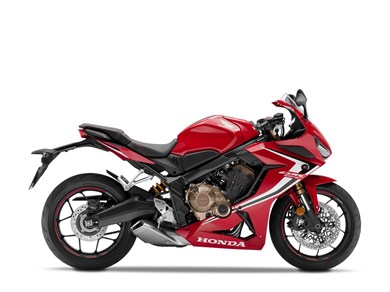

Honda CBR650R (2025)
Technical Data
| Engine and Drive Train | |
|---|---|
| Engine type | In line |
| Cylinders | 4 |
| Strokes | 4-Stroke |
| Valves per cylinder | 4 |
| Valves | DOHC |
| Cooling | liquid |
| Displacement | 649 ccm |
| Bore | 67 mm |
| Stroke | 46 mm |
| Max. Power Output | 95 HP |
| Rpm at Max. Power Output | 11000 rpm |
| Max. Torque | 64 Nm |
| Rpm at Max. Torque | 8000 rpm |
| Compression Ratio | 11.4 |
| Fuel system | Injection |
| Starter | Electric |
| Clutch Type | Multiplate in oil-bath |
| Ignition | Digital, Transistor |
| Final Drive | Chain |
| Transmission Type | Gearshift |
| Number of gears | 6 |
| Chassis | |
| Frame | Steel |
| Frame type | Twin Tube |
| Steering axis angle | 64.5 degree |
| Trail | 101 mm |
| Suspension Front | |
| Front suspension | Upside-Down telescopic fork |
| Brand | Showa |
| Diameter | 41 mm |
| Travel | 120 mm |
| Suspension Rear | |
| Rear suspension | Swing arm |
| Material | Aluminium |
| Shock absorber | Monoshock |
| Adjustment | Preload |
| Brakes Front | |
| Front brake | Double disk |
| Diameter | 320 mm |
| Piston | Double piston |
| Technology | Wave |
| Brakes Rear | |
| Rear brake | Disc |
| Diameter | 240 mm |
| Piston | Single piston |
| Assistance Systems | |
| Assistance systems | ABS |
| Dimensions and Weights | |
| Front tyre width | 120 mm |
| Front tyre height | 70 % |
| Front tyre diameter | 17 inch |
| Rear tyre width | 180 mm |
| Rear tyre height | 55 % |
| Rear tyre diameter | 17 inch |
| Length | 2110 mm |
| Width | 755 mm |
| Height | 1145 mm |
| Wheelbase | 1450 mm |
| Seat Height from | 810 mm |
| Kerb Weight (with ABS) | 208 kg |
| Fuel Tank Capacity | 15.4 l |
| License | A |
| Stationary noise | 97 dB |
