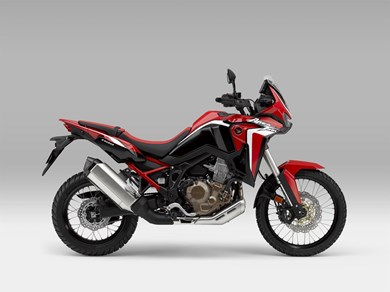

Honda CRF1100L Africa Twin (2025)
Technical Data
| Engine and Drive Train | |
|---|---|
| Engine type | In line |
| Degrees | 0 |
| Cylinders | 2 |
| Strokes | 4-Stroke |
| Valves per cylinder | 4 |
| Cooling | liquid |
| Displacement | 1084 ccm |
| Bore | 92 mm |
| Stroke | 81.5 mm |
| Max. Power Output | 102 HP |
| Rpm at Max. Power Output | 7500 rpm |
| Max. Torque | 105 Nm |
| Rpm at Max. Torque | 6250 rpm |
| Compression Ratio | 10.1 |
| Fuel system | Injection |
| Starter | Electric |
| Clutch Type | Multiplate in oil-bath |
| Ignition | Transistor |
| Final Drive | Chain |
| Transmission Type | Gearshift |
| Number of gears | 6 |
| Available for A2 license | yes |
| Chassis | |
| Frame | Steel |
| Frame type | Double cradle |
| Steering axis angle | 62.5 degree |
| Trail | 113 mm |
| Suspension Front | |
| Front suspension | Upside-Down telescopic fork |
| Brand | Showa |
| Diameter | 45 mm |
| Travel | 230 mm |
| Adjustment | Compression, Preload, Rebound |
| Suspension Rear | |
| Rear suspension | Swing arm |
| Material | Aluminium |
| Shock absorber | Monoshock |
| Strut | Pro-Link |
| Brand | Showa |
| Travel | 220 mm |
| Adjustment | Compression, Preload, Rebound |
| Brakes Front | |
| Front brake | Double disk |
| Diameter | 310 mm |
| Piston | Four pistons |
| Actuation | Hydraulic |
| Technology | radial, Wave |
| Brakes Rear | |
| Rear brake | Disc |
| Diameter | 256 mm |
| Piston | Single piston |
| Assistance Systems | |
| Assistance systems | ABS, Riding modes, Cornering ABS, Ride by Wire, Traction control, Anti-wheelie |
| Dimensions and Weights | |
| Front tyre width | 90 mm |
| Front tyre height | 90 % |
| Front tyre diameter | 21 inch |
| Rear tyre width | 150 mm |
| Rear tyre height | 70 % |
| Rear tyre diameter | 18 inch |
| Length | 2330 mm |
| Width | 960 mm |
| Height | 1395 mm |
| Wheelbase | 1575 mm |
| Seat Height from | 850 mm |
| Seat Height to | 870 mm |
| Kerb Weight (with ABS) | 226 kg |
| Fuel Tank Capacity | 18.8 l |
| License | A |
| Equipment | |
| Equipment | LED-Headlights |
All information is supplied without guarantee. Errors and clerical errors reserved.
