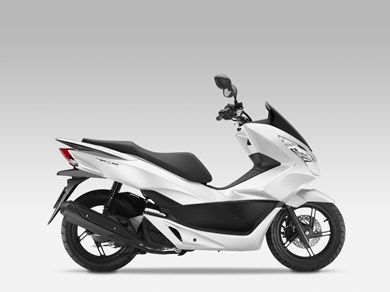

Honda PCX125 (2025)
Technical Data
| Engine and Drive Train | |
|---|---|
| Cylinders | 1 |
| Strokes | 4-Stroke |
| Valves per cylinder | 2 |
| Cooling | liquid |
| Displacement | 124,9 ccm |
| Bore | 52,4 mm |
| Stroke | 57,9 mm |
| Max. Power Output | 11,7 HP |
| Rpm at Max. Power Output | 8500 rpm |
| Max. Torque | 12 Nm |
| Rpm at Max. Torque | 5000 rpm |
| Compression Ratio | 11 |
| Starter | Electric |
| Clutch Type | Centrifugal force |
| Ignition | Digital, Transistor |
| Final Drive | Belt |
| Transmission Type | Variomatic |
| Chassis | |
| Frame | Steel |
| Brakes Front | |
| Piston | Three pistons |
| Brakes Rear | |
| Rear brake | Drum |
| Dimensions and Weights | |
| Front tyre width | 90 mm |
| Front tyre height | 90 % |
| Front tyre diameter | 14 inch |
| Rear tyre width | 100 mm |
| Rear tyre height | 90 % |
| Rear tyre diameter | 14 inch |
| Length | 1930 mm |
| Width | 740 mm |
| Height | 1100 mm |
| Wheelbase | 1315 mm |
| Seat Height from | 760 mm |
| Kerb Weight | 130 kg |
| Fuel Tank Capacity | 8 l |
| License | A1 |
All information is supplied without guarantee. Errors and clerical errors reserved.
