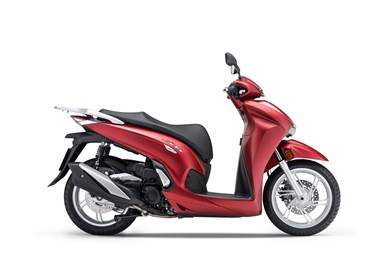

Honda SH350i (2025)
Technical Data
| Engine and Drive Train | |
|---|---|
| Cylinders | 1 |
| Strokes | 4-Stroke |
| Valves per cylinder | 4 |
| Valves | OHC |
| Cooling | liquid |
| Displacement | 330 ccm |
| Bore | 77 mm |
| Stroke | 70,7 mm |
| Max. Power Output | 29 HP |
| Rpm at Max. Power Output | 7500 rpm |
| Max. Torque | 32 Nm |
| Rpm at Max. Torque | 5250 rpm |
| Compression Ratio | 10,5 |
| Fuel system | Injection |
| Starter | Electric |
| Clutch Type | Centrifugal force |
| Ignition | Digital, Transistor |
| Final Drive | Belt |
| Transmission Type | Variomatic |
| Chassis | |
| Frame | Steel |
| Steering axis angle | 62,5 degree |
| Trail | 99 mm |
| Suspension Front | |
| Front suspension | Telescopic fork |
| Diameter | 35 mm |
| Suspension Rear | |
| Rear suspension | Unit Swing |
| Shock absorber | Dual Shock |
| Brakes Front | |
| Front brake | Single disk |
| Diameter | 256 mm |
| Piston | Double piston |
| Brakes Rear | |
| Rear brake | Disc |
| Diameter | 240 mm |
| Piston | Single piston |
| Assistance Systems | |
| Assistance systems | ABS, Traction control |
| Dimensions and Weights | |
| Front tyre width | 110 mm |
| Front tyre height | 70 % |
| Front tyre diameter | 16 inch |
| Rear tyre width | 130 mm |
| Rear tyre height | 70 % |
| Rear tyre diameter | 16 inch |
| Length | 2160 mm |
| Width | 742 mm |
| Height | 1161 mm |
| Wheelbase | 1452 mm |
| Seat Height from | 805 mm |
| Kerb Weight (with ABS) | 174 kg |
| Fuel Tank Capacity | 9,1 l |
| License | A2 |
| Range | 303 km |
| combined CO2 emissions | 79 g/km |
| Combined fuel consumption | 3,4 l/100km |
| Equipment | |
| Equipment | LED-Headlights, Topcase |
All information is supplied without guarantee. Errors and clerical errors reserved.
